Краткий обзор приставки enybox em95x

First Impressions

I opened it up to find a tiny box that has a display on it. Seems interesting. While booting it says boot and the rest of the time it shows the time in 24 hour format and a few other indicators that I didn’t find particularly useful. In the retail box is the device remote and HDMI cable and power supply. I noticed no micro or mini USB port to flash firmware. I don’t have a type A to type A cable so will need to pick one up. I was working from home today so I was able to open immediately and play with it for a few hours. I have only had the stick form factor up until now other than my NVIDIA SHIELD so it was kind of nice to get a remote….I thought. But I immediately put it to the side and connected my Logitech K400. No keyboard layout files so only basic functions with my keyboards right now. I’ll add later at least it got me by. Definitely need an air mouse or touchpad with Android.

Fired up Kodi 15.2 that was preloaded (not sure at this point if it is standard or some special build) but immediately bombarded with a ton of add-on updates so I went and worked for 30 min on my day job. I went in and added my collection on my NAS drive. It went off without a hitch and played all my files. Ohh and I only have it hooked up to a monitor with a DVI in so only get video (720p). I pulled out a Jabra Link 510 Bluetooth speakerphone and worked as expected.  All my normal 1080p test vids played without a problem.  I even added my videos from my video camera which up until now only my Shield would play stutter free. (On a side note I went back and tested on s805 device and videos from my HD camera play now) Even my Tvheadend recordings played well.  They are uncompressed mpeg2. About 6 gig an hour. I was using wireless delivered from an AP about 2 feet away. I decided to test by connecting to my AP in the living room about 35’ away and it wasn’t able to maintain these higher bitrate movies. I went back and checked my video camera videos as well and wireless wasn’t able to keep up. Regular H.264 streams at 1 gig an hour played fine. Only thing that I couldn’t get working was live TV with Tvheadend on built in Kodi. I will try again later after I clear Kodi back to a clean slate. (I went back and Tvheadend is broke in the built in Kodi.)

One thing I noticed is that it is super aggressive on killing background processes. Just to go from Kodi to settings and change Wi-Fi settings, Kodi would restart.

It is rooted (yay)

Khi mua Android Tivi Box quý khách sẽ được tặng chuột không dây và tai nghe Blutooth

EM95X là một sản phẩm của hãng Enybox, sử dụng chip xử lý Amlogic S905X Quad-Core ARM Cortex-A53 (chip lõi tứ 64 bit cho tốc độ xử lý lên đến 2.0GHz) với hệ điều hành mới Android 6.0 (đã được cập nhật lên 7.2). TV Box EM95X sẽ biến chiếc TV truyền thống hoặc Màn hình LCD của bạn thành trung tâm giải trí đa phương tiện thông qua kết nối Internet (qua WiFi hoặc RJ45 jack cắm mạng).

Hơn thế nữa tại Techbox luôn cập nhật và tích hợp sẵn trên Enybox EM95X phiên bản KODI mới nhất — đây là ứng dụng giải trí không thể thiếu trên những chiếc Android TV Box như EM95X. KODI sẽ khiến cho việc giải trí của bạn hoàn toàn mới mẻ và đa dạng với các trình cắm (addon) giải trí hay nhất dành cho riêng từng quốc gia.Bạn cũng có thể tự tải KODI tại đây

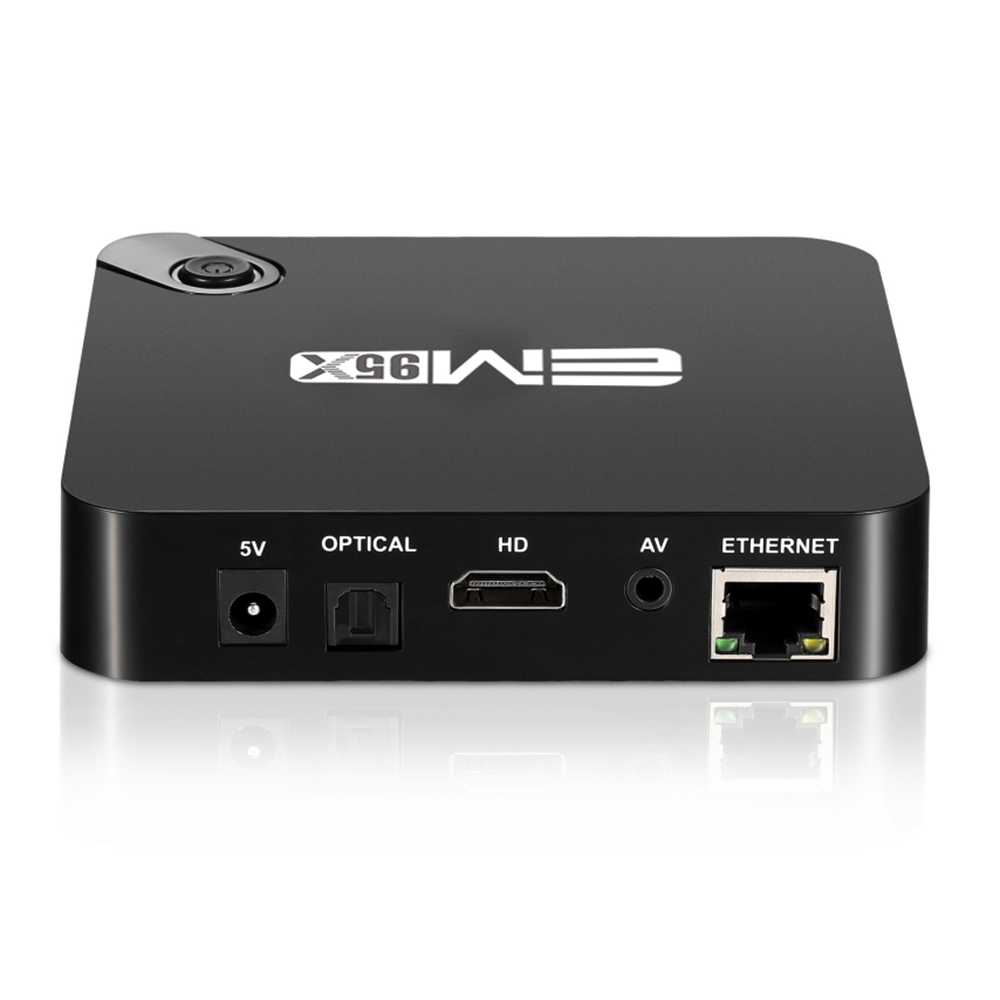

Телевизионная приставка Enybox EM95X

Enybox EM95X – телевизионная приставка под управлением операционной системы Android, основным предназначением которой является воспроизведение фильмов, музыки и другого подобного контента.
В первую очередь данная приставка станет отличным приобретением для владельцев старых ЖК-телевизоров, не имеющих поддержки SmartTV. Хотя и для современных телевизоров Enybox EM95X также неплохо подойдёт, ведь приставка имеет расширенный функционал по сравнению с возможностями SmartTV.

Устройство может похвастаться очень компактными размерами, благодаря чему его можно разместить буквально везде. Такая особенность отлично подойдёт людям, не желающим размещать громоздкую технику рядом с телевизором.

Наличие встроенного модуля Wi-Fi и разъёма Ethernet позволит вам подключиться к интернету или к домашней сети, а сервис Google Play предоставит доступ к огромному количеству цифрового контента, к такому как фильмы, музыка, различные программы и даже игры. Хотя для игры на приставке Enybox EM95X потребуется подключить отдельный геймпад, ведь комплектный пульт дистанционного управления плохо подходит для таких целей.

Встроенной памяти в приставке всего лишь 8 гигабайт, что для подобного устройства мало. Ситуацию кардинально меняет наличие слота под дополнительную карту памяти, благодаря чему можно сильно расширить возможности Enybox EM95X. Дополнительные USB разъёмы также позволяют использовать дополнительные накопители, такие как внешние жёсткие диски или USB флешки. Также USB порты позволят вам заряжать смартфоны или другие карманные устройства от телевизионной приставки.

В плане воспроизведения музыки и видео приставка может дать фору многим конкурентам. Устройство поддерживает практически все современные форматы файлов, благодаря чему на нём вы сможете просмотреть любой фильм, даже блокбастеры в высочайшем качестве.

Пользователи Enybox EM95X всегда могут скачать сторонний проигрыватель для видео или музыки, если стандартный чем-либо не устраивает. Благо в Google Play имеется огромное количество самых разнообразных приложений, в том числе и медиаплееров.

В целом Enybox EM95X является уникальным устройством, совмещающим в себе функционал полноценного компьютера и простоту приставки для телевизора. Владельцам такой техники не придётся тратить кучу времени на первоначальную настройку, достаточно подключить её к телевизору и начать пользоваться. С поставленными задачами Enybox справляется.

Запрещено копировать без ссылки на сайт


Сделать закладку:

• Статьи:
• Инструкция по установке кодовой таблицы PC 866 для матричного принтера EPSON.
• Как выполнить автоматическое программное выключение компьютера
• Микрозаймы через Интернет
• Статья. NVIDIA серии GTX 400. Тестирование
• Новый ноутбук Samsung 900X1A
• Кредит Вебмани онлайн
• Плеер Sony Walkman NWZ-E053
• Статья. Платформа LGA1156: к вопросу об овчинке и выделке
• Ноутбук Sony VAIO YB1
• Кредит Webmoney взять
• Snap-камера Sony Bloggie MHS-TS20
• Webmoney займы
• Статья. Новинки и тенденции международной IT-выставки Computex.

Thanks to Eny Technology company, today we have another unboxing of a great TV Box: Eny EM95. You can buy Eny EM95 Smart TV Box from Aliexpress.com for only 51.65 USD with free shipping world wide.

Eny EM95 Smart TV Box.
EM95 was sent to me courtesy of the nice people at Eny company, so thank you all, and especially Kelvin, for the fast communication and support. EM95 is the first home branded S905 based model from Eny. It was designed to keep a low price tag while still providing more than adequate video performance. It matches the budget oriented hardware inside the box – 1 GB of RAM and 8 GB of storage. Its antenna is built into the box. The box is the standard square shape.

Eny EM95 Specifications
Chipset: Amlogic S905 quad core ARM Cortex-A53 @ up to 2.0 GHz
GPU: quad core Mali-450MP GPU up to 750MHz (DVFS)
OS: Android 5.1
System RAM Memory: 1GB DDR3 (Optional 2GB)
Flash Storage:  8GB NAND flash (Optional 16GB) + SD card slot
Video Output: HDMI 2.0 up to 4K @ 60Hz with support for CEC and HDCP 2.2 , AV output
Video Codecs: H.264, H.265, HD AVC/VC-1, HD MPEG1/2/4, RM/RMVB, Xvid/DivX 3/4/5/6, RealVideo 8/9/10 up to 4K resolutions
Audio: HDMI, AV, optical S/PDIF
Connectivity: 10/100M Ethernet (Optional Gigabit Ethernet), Wi-Fi @ 2.4GHz
Bluetooth 4.0
USB: 3x USB 2.0 host ports
Misc: Power LED, LED display on front panel
Power Supply:  DC 5V/2A
Power Indicator (LED) Power ON :blue; Standby :Red Communication
Ethernet:  10/100M Ethernet LAN RJ45
WIFI: 802.11 a/b/g/n 2.4GHz
Bluetooth: 4.0 BLE
Sensor: IR Sensor
Indicator: frontal LED display

Ports
3 x Standard USB 2.0
1 x DC-in Jack
1 x HDMI 2.0 A Type (4K/2K)
1 x S/PDIF optical audio out port
1 x AV out
1 x RJ45 100M Ethernet port
1 x SD / MMC card reader
1 x IR receiver
1 x Power LED
1 x Power button

Package content
1x EM95 TV Box
1x Remote Controller
1x Power Plug (EU, US, UK, AU Standard)
1x HDMI Cable
1x User manual

Photo gallery full album here.

Product page: www.enybox.com Contact: [email protected]

About Eny TechnologyEstablished in 2005 Eny Technology Co., Ltd. is a reliable manufacturer and exporter of Android tv box, Thin Client Terminal and Cloud Terminal. Our products are exported to EU, America, Asia etc. Our products have enjoyed a nice reputation in world market. In order to supply quality products and excellent service, the company has got approvable reports and certificates of CE, UL certificates and so on. From Jun 2008 years, the company start to open the factory for Thin Client Terminal field, We have rich experience both on manufacture and trading, At year of 2011, Our new product Android System Google tv box and Cloud Terminal released .We have every confidence on our quality and services. Warmly welcome every customer to visit us, and hope we both sides could create a brilliant future with our effort. OEM and ODM orders are welcomed. Contact us today for more details!

Did this article help you? If so, please tell me in a comment what do you think about it.

Don’t miss any of our future video tutorials, follow us on Youtube. Like us on . Add us in your circles on . Watch our photo albums on Flickr. Subscribe now to our newsletter.

Amlogic S905X: Обзор нового процессора 64-бит

Пользователи известного во всём мире бренда Amlogic получили возможность пользоваться четырёхядерным процессором Amlogic s905x. Основой для него служит шестидесяти четырёх битная архитектура. Благодаря ему скорость, с которой происходят разные процессы и выполняются разнообразные команды, существенно увеличивается, если проводить сравнение с архитектурой тридцати двух битной.

Отличием приставки под названием Android TV box, в которой используется Amlogic s905x, является:

• Высокий показатель производительности.
• Максимально доступная стабильность.
• Являющаяся гарантированная адаптация с практически любой техникой.

Было проведено тестирование работы процессора Amlogic s905x. Его результаты позволили выявить целый ряд дополнительных преимуществ. 28 000 баллов — таков его показатель в процессе испытаний. И это при том, что его предшественниками не могли преодолеть порога на уровне 16 000. В чём заключается секрет сногсшибательного увеличения показателя эффективности, а также и производительности? Для ответа на этот вопрос и была написана эта статья.

Modding

So there are some what I call issues with the rom…too much bloat…Kodi loads all these add-ons, no navigation bar, or menu bar. KL files missing. KL files are keyboard layout files that map all the buttons on keyboards. All the special functions including play, pause, volume up and down, Home etc . Aggressive background app killer. Most of these are present on these android devices and not just this one. I am accustomed to cleaning them up.

After loading I installed ES File Explorer, Google Now Launcher, System App Remover root and cleaned all the apps that I didn’t want/need. Added my keyboard layout files for my hid devices and after researching deleted /system/etc/allowbackgroundapp.list….I was poking around the file system and after experiencing the hostile background app killer googled the file name….some evil genius on 4pda deleted the file and it did the exact opposite what I thought it would do and now background apps persist….I thought initially I was going to have to add all my apps to this.

Now I have a proper android build..Nice and clean

Click for Original SizeClick for Original Size

EM95X Hệ điều hành tiên tiến và cấu hình hiệu suất cao

Hiệu suất cao và không gian lưu trữ lớn: RAM 2GB DDR3 với ROM 16GB. Khởi động và vận hành các ứng dụng, trò chơi nhanh chóng với dung lượng lưu trữ mở rộng lên đến 32GB. Cho phép người dùng xem video, phim và nhạc từ các phương tiện lưu trữ thông qua bộ nhớ máy, USB hoặc trực tuyến (Youtube, Flixster, Facebook, v.v …).

Mã hóa Video hiệu quả Cao H.265: Tiết kiệm băng thông, H.265 là bộ giải mã có thể tiết kiệm 50% tài nguyên băng thông, cho phép bạn xem bộ phim 4K một cách trơn tru. Độ phân giải 4K Ultra HD cao gấp 4 lần Full HD.

Độ phân giải UHD 4K: Bộ giải mã video 4K * 2K H.265 và đầu ra 4K * 2K với mạng cáp 100Mbps cung cấp cho bạn hình ảnh độ nét cao.

Hỗ trợ truyền không dây và đa ngôn ngữ: Chuẩn WiFi 802.11 B/g/n và Bluetooth 4.0 đảm bảo truyền tín hiệu mạnh mẽ với chất lượng và tốc độ cao. Đồng thời hỗ trợ đa ngôn ngữ: tiếng Trung, tiếng Anh, tiếng Pháp, tiếng Tây Ban Nha, Đức, Ý, Nhật, Hàn Quốc …

Định dạng video: AVI / RM / RMVB / TS / VOB / MKV / MOV / ISO / WMV / ASF / DAT / MPG / MPEG / MP4.

Định dạng âm thanh: MP3 / WMA / AAC / WAV / OGG / AC3 ​​/ DDP / TrueHD / DTS / DTS / HD / FLAC / APE.Định dạng ảnh: JPEG / BMP / GIF / PNG / TIFF.

Trực tuyến: Duyệt qua tất cả các trang web video, phim trực tuyến, hỗ trợ Netflix, Hulu, Flicker, Picasa, YouTube, Twitter, Facebook, v.v..

Các bạn có thể tải bất kỳ ứng dụng nào từ trang chủ CHPlay tại đây

TV Box EM95X Phần Cứng Mạnh Mẽ

Với thiết kế tinh tế với phần cứng, thân máy màu đen mạnh mẽ. Điểm nhấn ở vẻ bề ngoài của android tv box giá rẻ  Em95X có thể nói đến thiết kế và vị trí của nút nguồn, tiếp đến là tên máy được in chìm với màu trắng giữa nền đen của thân máy. Phía trước mặt là màn hình báo giờ và các kết nối. Chỉ thị LED: Màu xanh lam(hoạt động), màu đỏ(chế độ chờ). Phía sau EM95X gồm có các cổng kết nối: 1 cổng HDMI, 1 cổng AV(hỗ trợ cho cả những chiếc Tivi đời cũ), 1 cổng Ethernet(kết nối Internet qua cổng Lan), 1 cổng âm thanh Optical, chân nguồn 5V/2A. Được trang bị 3 cổng USB và khe cắm thẻ nhớ SD bên hông, 3 cổng USB bạn có thể thoải mái kết nối với các thiết bị như chuột không dây, chuột bay, bàn phím, Webcam, USB, ổ cứng gắn ngoài, .v.v.. Khe cắm thẻ nhớ có thể hỗ trợ tối đa 32G.

Chuột / Bàn phím: Hỗ trợ chuột và bàn phím qua USB, cũng hỗ trợ chuột và bàn phím không dây qua cổng USB với tốc độ đường truyền 2.4GHz.

EM95X — Phản chiếu hình ảnh lên tivi

Cũng giống như các đàn anh khác Enybox EM95X hỗ trợ phản chiếu hình ảnh từ điện thoại, máy tính bảng… lên tivi thông qua các ứng dụng có sẵn: DLNA, Airplay, Miracast. Một không gian giải trí được mở rộng, chúng ta sẽ không còn phải nhìn những bức hình nhỏ bé hay lướt facebook bị hạn chế tầm nhìn nữa, EM95X sẽ mang đến trải nghiệm hoàn toàn mới cho tất cả người dùng.

Tại Techbox.vn khi bạn mua sản phẩm TV Box EM95X sẽ bao gồm:

• 1 * Android TV Box Enybox EM95X
• 1 * Bộ cấp nguồn
• 1 * Điều khiển từ xa(dùng kết nối hồng ngoại)
• 1 * Cáp kết nối HDMI
• 1 * Sách hướng dẫn

Tổng hợp những tính năng trên EM95X

✓ Giao diện đơn giản, dễ sử dụng, gần gũi và thân thiện với người dùng

✓ Xem TV online với nhiều kênh truyền hình trong nước và quốc tế, bao gồm cả các kênh HD

✓ Xem phim chuẩn HD online với hàng ngàn bộ phim liên tục cập nhật

✓ Hát karaoke online HD với hình ảnh và âm thanh chất lượng cao

✓ Lướt web, đọc báo online, Facebook, Youtube, Zing MP3, chơi game mượt mà

✓ Kết nối Video call trong nước, quốc tế MIỄN PHÍ bằng Skype, Zalo, Viber…

✓ Hỗ trợ các dòng TV cả những TV LCD và CRT đời cũ với cổng ra AV

✓ Với kho ứng dụng khổng lồ từ CH Play bạn có thể tải bất kì ứng dụng bạn yêu thích

Wrap Up and 4K

I am really pleased with the device. It played every 1080p video that I threw at it. Overall the system works and performs well. It gets a little laggy occasionally but only when doing a lot. Chrome is probably the worst. I believe all this can be sorted out in the coming months. For as short a time s905 has been on the market it is doing well. Amlogic is addressing issues quickly and ENY is patching their img. I would really like to try a box with 2 gig of memory to see if that needs to be the new minimum. Now for 4K…..Sure it can play 4K content…..but where do you get it…Netflix…nope not going to happen. Amazon….nope not going to happen. There are a few others but I doubt they will work on these kinds of devices. Only option I found was torrents but who wants to do that. If in the market for an inexpensive box I would suggest this over an s805 any day. Everything is faster and the cost difference is not much. Gig Ethernet and faster NAND are worth the couple extra bucks difference. But if your only purpose is to consume 4K content I would look at another device.

This is my first review ever…I used the box for about a month…if you have any additional things you would like for me to test let me know in the comments below and I will be glad to do it.

Specs

Eny EM95 specifications:

• SoC –  Amlogic S905 quad core ARM Cortex-A53 @ up to 2.0GHz with quad core Mali-450MP GPU up to 750MHz
• System Memory – 1GB DDR3 (Option: 2GB)
• Storage – 8GB NAND flash (Option: 16GB) + SD card slot
• Video Output – HDMI 2.0 up to 4K @ 60Hz with support for CEC and HDCP 2.2 , AV output
• Video Codecs – H.264, H.265, HD AVC/VC-1, HD MPEG1/2/4, RM/RMVB, Xvid/DivX 3/4/5/6, RealVideo 8/9/10 up to 4K resolutions
• Audio – HDMI, AV, optical S/PDIF
• Connectivity – 10/100M Ethernet (Optional Gigabit Ethernet), Wi-Fi @ 2.4GHz, Bluetooth 4.0
• USB – 3x USB 2.0 host ports
• Misc- Power LED, LED display on front panel
• Power Supply –  DC 5V/2A

Peripherals

My Logitech webcam worked as expected, as well as a USB thumb drive, and all my keyboards: K400, RII knockoff, C120 (not pictured below…remote of choice at our house and wife was using it while taking the picture). The USB hard drive has the 10 MB issue. The 10 MB issue is where external hard drives look like they have only 10 MB of free space and you can only read from them. It is present in all s905 boxes. I also tried my Dell touchscreen monitor but it didn’t work. It requires quanta hid drivers to be turned on. I am really surprised they don’t add this to the kernel because it is a popular touchscreen interface.

Updating and Testing

I ended up making a Type A to Type A cable to flash img firmware. I sacrificed 2 USB cables, cut them and connected the corresponding colors. I did leave the red power disconnected which was fine at first. Later I ended up making a mistake and bricking the device. I disconnected power in the middle of a flash. Ugh…. but after several hours and using different methods with SD cards I took the cable apart and connected the red and I was able to flash again with Amlogic’s img burning tool. The familiar windows notification was a blessing when I heard it. I would call this box unbrickable. Even with a homemade cable I had no problems flashing and had no corruption.

To flash load the img in the burning tool and press start. Connect the USB cable which will power the box on then immediately connect the supplied power adapter.

As I told you in this article, Eny Technology send me a few days ago a new Amlogic S905 quad core Android TV Box: Eny EM95 model.

The TV box has a blackmatte plastic exterior case, it is compact and very well organized, with and all the connectors located in the right & rear sides, and the power button on the top. In the front side it has only the IR receiver & a beautiful LCD. The TV box comes with a 5V/2A power supply, an IR remote control with IR learning function requiring two AAA batteries, an HDMI cable, and a user’s manual in English. The front panel has the LCD display with 4-digit for time and some simple text, as well as icons for CVBS, HDMI, USB, CARD, APPS and SETUP.  One of the side features a full-sized SD card slot, and three USB 2.0 host ports, while the rear panel comes with a 5V power jack, optical S/PDIF, HDMI 2.0 and AV (composite) output, and a Gigabit Ethernet port.

Next, watch the first impressions and the experience on Android Lollipop 5.1.1 stock firmware.
Firmware tested: stock Android Lollipop 5.1.1
Kernel version: 3.14.29
Build number: 20160217
Root: This firmware version is rooted, with Super User application preinstalled.

Full photo album here.

The launcher is good enough, with big tiles, propably made in house by Eny. There are a lot of preinstalled applications, including Play Store and Google applications (gapps). This firmware version has root acces, with Super User already preinstalled.

In Antutu Video Tester 3.0 Eny EM95 TV Box scores 908 points, a very good score in this test ranking. It played smoothly almost all video file types; this firmware version fully supports 27 video & audio format files and it partially supports 3 video & audio format files. In Antutu Benchmark 6.1.2 the device achieves also an amazing score, over 36.000 points.

As you can see, Eny EM95 Lollipop TV Box is a very good and powerful multimedia player giving you the power to transform your living room into a real 4k Home Theater.

Internet speed tested on both WiFi & Ethernet gets good values too. For WiFi connection, the download speed was 31 Mbps and the upload speed is 41 Mbps. Wired, on Ethernet connection, the download speed is 57 Mbps and the upload speed is 71 Mbps.

About Eny Technology Established in 2005 Eny Technology Co., Ltd. is a reliable manufacturer and exporter of Android tv box, Thin Client Terminal and Cloud Terminal. Our products are exported to EU, America, Asia etc. Our products have enjoyed a nice reputation in world market. In order to supply quality products and excellent service, the company has got approvable reports and certificates of CE, UL certificates and so on. From Jun 2008 years, the company start to open the factory for Thin Client Terminal field, We have rich experience both on manufacture and trading, At year of 2011, Our new product Android System Google tv box and Cloud Terminal released .We have every confidence on our quality and services. Warmly welcome every customer to visit us, and hope we both sides could create a brilliant future with our effort. OEM and ODM orders are welcomed. Contact us today for more details!

Did this article help you? If so, please tell me in a comment what do you think about it.

Don’t miss any of our future video tutorials, follow us on Youtube. Like us on . Add us in your circles on . Watch our photo albums on Flickr. Subscribe now to our newsletter.

Сравниваем S905 с S905X

Какие же отличительные черты имеются у S905X, если сравнивать его с Amlogic S905? Начать следует с лучших технических показателей вкупе с выросшими возможностями. Но, несмотря на это, отсутствуют существенные отличия в цене. Ведь приставки, в которых установлены новинки, стоят практически столько же, сколько и tv box с использованием предыдущих процессоров данной марки.

Список отличий S905 относительно S905X выглядит следующим образом:

• Имеется поддержка видеовыхода HDMI 2.0a, благодаря ему обеспечивается картинка, имеющая высокий уровень реалистичности с отличной чёткостью изображения. А в придачу к этому в разы выросли такие характеристики кадров, как контрастность и цветопередача.
• Есть опция, благодаря которой появилась возможность поддерживать аппаратное декодирование многоканального звука разных систем.
• С помощью чипа от Amlogic S905X поддерживаются Hybrid Log-Gamma, а также и HDR-10.
• Интеграция в Fast Ethernet позволила добиться расширения не только возможностей, но и скоростных характеристик интернета.
• Поддержка до LPDDR3, LPDDR2, 2GB DDR3/4, DDR3L.
• В процессоре эффективный контроллер Smart карт ISO 7816, входит CI+ порт, интегрирован 10/100M PHY интерфейс.

Video

This thing plays everything that I tried that I had trouble with initially on previous boxes. My testing was done from a NAS drive. Not a very good one it doesn’t give massive throughput. I max out at 17 MB/s to a PC over wire. When trying to super high bitrate movies Wi-Fi wasn’t sufficient. I had to connect at gig speeds to play. After initial buffer Tears of Steel played without a hitch.

I ended up removing the Kodi that came on the box and installing 16.0 from the play store.

	Kodi 16.0	MX Player
big_buck_bunny_1080p_H264_AAC_25fps_7200K_short.MP4	ok	ok
big_buck_bunny_1080p_MPEG2_MP2_25fps_6600K_short.MPG	ok	ok
big_buck_bunny_1080p_MPEG4_MP3_25fps_7600K_short.AVI	ok	ok
big_buck_bunny_1080p_VC1_WMA3_25fps_8600K_short.WMV	ok	ok
big_buck_bunny_1080p_VP8_VORBIS_25fps_7800K_short.WebM	ok	Stutters
Ducks Take Off .mkv	Doesn’t play	OK but network can’t keep up stutters
jellyfish-120-mbps-4k-uhd-hevc-10bit.mkv	almost plays	Almost Perfect. Perfect from external SD
Samsung_UHD_Dubai.ts	ok	Locks up after a few seconds
tears_of_steel_4k_H264_24fps.mov	ok	Locks up after a few seconds
tears_of_steel_1080p_H264_24fps.mov	ok	ok
140626_4k_hm130_4s_sao_dbf_qp27.265.mpeg	Doesn’t play	ok
140803_4k_hm130_4s_sao_dbf_qp27.265.mpeg	Doesn’t play	ok

**Movies delivered from NAS Drive via Gig network.

Audio pass-through and S/PDIF were difficult for me to test. I had never really played with it so I had to do a lot of research. I had to look up manuals for my TV and receiver and it should work. I had relatively good luck with S/PDIF directly to my receiver. I was able to get DTS working with a tick/thump periodically coming out the speakers while using Kodi. In MX player it works. But I really wanted to connect my TV to my receiver via S/PDIF then plug HDMI from the box so all i have to do is turn on my receiver and don’t have to go into settings.  The only thing that works is 2 channel audio, DTS gives me static out the speakers.  I am OK with prologic but I know a lot of people want DTS.
