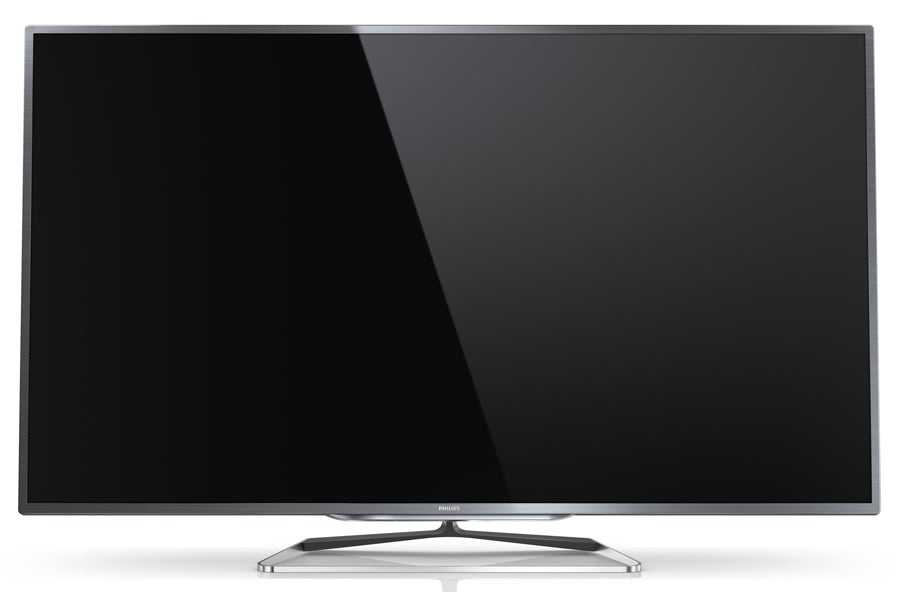

Телевизор philips 65 pfl 9708 s

Philips 65PFL9708S: Set Up

The huge amount of options available in Philips’ slightly tortuous onscreen menus makes the 65PFL9708S a potentially very complicated TV to use. So while we’re not generally fans of dictating to people how they should set their TVs up, we are going to make at least a few suggestions.

Another feature we would recommend deactivating, at least when you’re watching films, is the TV’s motion processing. For despite Philips quadrupling the power of its processing compared with its top-end HD TVs, the Natural Motion option still causes a few problems, as we’ll detail in the picture quality section.

Next on our ‘handle with care’ list is the set’s Colour Enhancement feature. For while this can give colours a clear lift in terms of their saturation levels, it also starts to make pictures look extremely unnatural on its highest setting, and even on its lowest setting it noticeably reduces the sense of detail when watching UHD sources. Our advice would be to use it on its low setting for non-UHD sources, but leave it off for UHD.

Finally, we didn’t see much benefit from the TV’s noise reduction systems. They’re utterly unnecessary and actually quite damaging with native UHD content, and even with upscaled sources we often felt they were doing more harm than good. There’s much more joy to be had in picture quality terms from tweaking settings like gamma, contrast, sharpness, colour and backlight.

How we test televisions

We test every TV we review thoroughly over an extended period of time. We use industry standard tests to compare features properly. We’ll always tell you what we find. We never, ever, accept money to review a product.

Used as the main TV for the review period

Tested for more than a week

Tested using industry calibrated tools, discs and with real world use

Tested with broadcast content (HD/SD), video streams and demo discs

Technical Specifications

• Ambilight

  Ambilight Features

  • Wall colour adaptive
  • Lounge light mode

  Ambilight Version

  3 sided XL

• Picture/Display

  Aspect ratio

  16:9

  Diagonal screen size (inch)

  65

   inch

  Diagonal screen size (metric)

  165

   cm

  Display

  LED Ultra HD

  3D

  • Easy 3D
  • 2 Player Full Screen Gaming*
  • 3D Depth adjustment
  • 2D to 3D conversion

  Brightness

  450

   cd/m²

  Picture enhancement

  • Ultra Pixel HD Engine
  • Ultra Resolution
  • 900 Hz PMR Ultra
  • Micro Dimming Pro
  • Local contrast
  • Perfect 3D Natural Motion

  Panel resolution

  3840 x 2160p

• Supported Display Resolution

  Computer inputs on all HDMI

  up to 1920 x 1080 @ 60 Hz

  Extra Computer inputs on HDMI5

  up to Ultra HD 3840 x 2160 @30Hz

  Video inputs on all HDMI

  • up to 1920 x 1080p
  • @ 24, 25, 30, 50, 60 Hz

  Extra Video inputs on HDMI5

  • Ultra HD 3840 x 2160p
  • @ 24, 25, 30 Hz

• Tuner/Reception/Transmission

  Digital TV

  • DVB-T/T2/C/S/S2
  • Astra HD+ support
  • Freeview HD*

  Video Playback

  • NTSC
  • PAL
  • SECAM

  MPEG Support

  • MPEG2
  • MPEG4

• Smart TV

  Interactive TV

  HbbTV*

  TV programme guide*

  8-day Electronic Programme Guide

  SmartTV apps*

  • Catch-up TV
  • Netflix*
  • Online apps
  • Online Video shops
  • Open Internet browser
  • YouTube

  Social TV

  • Facebook
  • Skype
  • Twitter

• Multimedia Applications

  Video Playback Formats

  • Containers: AVI, MKV
  • H264/MPEG-4 AVC
  • MPEG-1
  • MPEG-2
  • MPEG-4
  • WMV9/VC1

  Music Playback Formats

  • AAC
  • MP3
  • WMA (v2 up to v9.2)

  Picture Playback Formats

  JPEG up to 8000 x 8000 pixels

• User Interaction

  Wireless interaction

  • SimplyShare
  • MultiRoom Client and Server*
  • Smart text remote control
  • Pointer remote control*
  • Wi-Fi Miracast Certified*

  Programme

  • Pause TV
  • USB Recording*

  Ease of Installation

  • Auto detect Philips devices
  • Device connection wizard
  • Network installation wizard
  • Settings assistant wizard

  Ease of Use

  • One-stop Home button
  • On-screen User manual

  Firmware upgradeable

  • Firmware auto upgrade wizard
  • Firmware upgradeable via USB
  • Online firmware upgrade

  Screen Format Adjustments

  • Autofill
  • Autozoom
  • Movie expand 16:9
  • Super Zoom
  • Unscaled
  • Widescreen

  Signal strength indication

  Yes

  Teletext

  1200-page Hypertext

  My Remote App*

  • Control
  • MyRemote Recording
  • Simply Share
  • TV Guide
  • Wi-Fi Smart Screen

• Processing

  Processing Power

  Hex Core

• Sound

  Output power (RMS)

  27 W (15 W + 2 x 6 W)

  Sound Enhancement

  • Auto Volume Leveller
  • Clear Sound
  • Incredible Surround
  • Pure Bass

  Sound Features

  • 3D wOOx
  • HD Stereo

• Connectivity

  Number of HDMI connections

  4 + 1 (Ultra HD)

  HDMI features

  • 3D (except HDMI5)
  • Audio Return Channel

  Number of components in (YPbPr)

  1

  EasyLink (HDMI-CEC)

  • Remote control pass-through
  • System audio control
  • System standby
  • Plug and play add to Homescreen
  • Auto subtitle shift (Philips)
  • Pixel Plus link (Philips)
  • One touch play

  Number of scarts (RGB/CVBS)

  1

  Number of USBs

  3

  Wireless connection

  Integrated Wi-Fi 11n

  Other connections

  • Antenna IEC75
  • Common Interface Plus (CI+)
  • Ethernet-LAN RJ-45
  • Digital audio out (optical)
  • Audio L/R in
  • Headphone out
  • Service connector

• Power

  Mains power

  AC 220 — 240 V 50/60 Hz

  Ambient temperature

  5°C to 35°C

  Standby power consumption

  < 0.1 W

  Energy Label Class

  A

  EU Energy Label power

  139

   W

  Power Saving Features

  • Auto switch-off timer
  • Eco mode
  • Light sensor
  • Picture mute (for radio)

  Off mode power consumption

  < 0.1

  Annual energy consumption

  193

   kW·h

• Accessories

  Included accessories

  • 6 x Passive 3D Glasses
  • Philips TV camera PTA317
  • Remote Control
  • 2 x AAA Batteries
  • Tabletop swivel stand
  • Power cord
  • DC power adapter
  • Component cable adapter
  • Quick start guide
  • Legal and safety brochure
  • Warranty Leaflet

  Optional accessories

  • 3D glasses PTA417
  • 3D glasses Game kit PTA436

• Dimensions

  Box depth

  240

   mm

  Box height

  1151

   mm

  Box width

  1585

   mm

  Product weight

  37.5

   kg

  Set Width

  1467

   mm

  Set width (with stand)

  1467

   mm

  Wall-mount compatible

  400 x 400 mm

  Set Height

  855

   mm

  Weight incl. Packaging

  52.1

   kg

  Set Depth

  45.5

   mm

  Set height (with stand)

  925

   mm

  Set depth (with stand)

  281

   mm

  Product weight (+stand)

  39.5

   kg

Philips 65PFL9708S: Design and Features

Compared with the svelte, gleaming designs of many of Philips’ other 2013 TVs, the 65PFL9708S is a bit bland. Its matt bezel is just another black rectangle – albeit quite a thin one considering the acreage of screen it holds – and its rear is relatively chunky side by today’s standards.

This uses LEDs built into the set’s rear to cast out coloured light from its left and right sides, and upper edge. This light can be set to a single tone of your choice, or better, it can be set to match the colour content of the picture you’re watching, tracking the colours down to a startlingly local level.

So long as you set this dynamic Ambilight approach to a fairly gentle level of aggressiveness, it delivers an excellent enhancement to your viewing experience, making long term viewing less stressful on your eyes and more immersive.

The 65PFL9708S’s exterior reveals another advantage over most rivals too: Five HDMIs where other UHD sets top out at four. Interestingly, one of these is specified as a ‘UHD input’, since it feeds into a special processing board equipped with twice the processing power attached to the other inputs.

This does not mean, however, that the UHD HDMI is built to the new HDMI 2.0 standard; the only brand offering such inputs remains Panasonic at the time of writing. In its current state, therefore, even the dedicated HDMI can’t handle UHD feeds at faster frame rates than 30fps.

Philips has assured us, though, that it’s working on a solution that will make the 65PFL9708S compatible with higher frame rate UHD feeds. It won’t be drawn on any details about this other than stating that the solution will be ‘external’. But at least the brand has stated categorically that some sort of 4K at 60/50Hz solution will happen, which is more than LG has!

The 3840×2160 panel at the 65PFL9708S’s heart is a VA (rather than IPS) type, which experience suggests should deliver better contrast but reduced viewing angles.

It uses edge LED lighting, driven by a micro dimming pro system that divides incoming images into small sections so that the TV’s processing can more accurately determine the optimal settings to use when generating pictures. There’s no local dimming of the sort you get with the Sony 65X9005A and Samsung UE65F9000, where different portions of the edge LED lights can have their output controlled individually. But there is a ‘local contrast’ feature that’s able to enhance the perception of contrast in different parts of the image.

The set’s built-in light sensor can be used in conjunction with the micro dimming pro system too, to deliver apparently better picture quality as well as reduced running costs. Normally we’re suspicious of such light sensor connections, but we found this Philips effort to actually be quite helpful in the way it effects black level response.

The main innovation is the development of new silicon capable of handling a mind-boggling four billion pixels at once. This means Philips can still operate judder and blur-removing Natural Motion circuitry even when you’re watching UHD, as well as providing an option that apparently allows you to make UHD content look even sharper than it does already!

We can already imagine video purists twitching at the thought of all this video processing, and we can’t help but wonder ourselves if images as natively awesome as UHD really need as much ‘help’ as Philips seems keen to give them. The 65PFL9708S provides 3D playback for anyone still keen on it, using the passive system that really comes into its own on UHD TVs on account of having twice as many lines of resolution to play with (since you no longer suffer the reduced resolution from 3D Blu-rays that you get with normal passive 3D HD TVs).

The set also carries Philips’ latest Smart TV system. Despite the actually rather cool recent addition of a new Cloud Explorer feature that lets you access any multimedia you might have stored online with Dropbox, this is sadly far from one of the best online TV services, thanks to a serious shortage of content and slightly primitive interface (for more details see our dedicated feature).

But then if Philips can work the sort of picture quality magic on a UHD level that it has at times with some of its past HD TVs, the lack of content on its smart TV system will be pretty easy to bear given all the alternative content sources emerging these days.

Philips 9000 series 65PFL9708S/60 TV 165.1 cm (65″) 4K Ultra HD Smart TV Wi-Fi Black

The Philips 65PFL9708S/60 TV is a model with a screen diagonal of 165.1 cm, a screen resolution of 3840 x 2160 pixels, an aspect ratio of 16:9, 5 HDMI ports to connect a Blu-ray player, DVD, a game console, etc., 3 USB ports to connect an external hard drive, a Chromecast, a Bluetooth receiver etc., Ethernet port to connect to the internet via cable, internet connection via Wi-Fi, in addition to the rest of the features listed below.

Release date: 2013-09-23.

Exhibition
Brand	Philips
Model	65PFL9708S/60
Aspect ratio	16:9
HDMI ports	5
USB supports	Yes
Ethernet sockets	Yes
USB ports	3
Ultra slim TV	No
Curved TV	No
Size diagonal	165.1
Resolution	3840 x 2160
Colour	Black
Image formats supported	JPG
Video formats supported	AVC,AVI,H.264,MKV,MPEG1,MPEG2,MPEG4,VC-1,WMV9
Audio formats supported	AAC,MP3,WMA
No. of speakers	2
Total speaker output	27
Internet access	Yes
Smart TV	Yes
Wi-Fi	Yes
Miracast screen mirroring support	Yes
Voltage requirement	220 — 240
Power consumption standby	0.1
Short description	Philips 9000 series 65PFL9708S/60, 165.1 cm (65″), 3840 x 2160 pixels, 3D, Smart TV, Wi-Fi, Black
Long description	Philips 9000 series 65PFL9708S/60. Display diagonal: 165.1 cm (65″), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Screen shape: Flat. 3D. Smart TV. Display brightness: 450 cd/m², Native aspect ratio: 16:9. Digital signal format system: DVB-C,DVB-S,DVB-S2,DVB-T,DVB-T2. Wi-Fi, Ethernet LAN. Product colour: Black
HD type:	4K Ultra HD ()
Display diagonal:	165.1 cm (65″)
Display diagonal (metric):	165 cm
Native refresh rate:	60 Hz
Screen format adjustments:	16:9, Auto, Zoom
Native aspect ratio:	16:9
Screen shape:	Flat
Display resolution:	3840 x 2160 pixels
Display brightness:	450 cd/m²
Audio
Subwoofer RMS power:	15 W
Built-in subwoofer:	Yes
RMS rated power:	27 W
Number of speakers:	2
TV tuner
Tuner type:	Digital
Analog signal format system:	NTSC,PAL,SECAM
Digital signal format system:	DVB-C,DVB-S,DVB-S2,DVB-T,DVB-T2
Ports and Interfaces
HDMI ports quantity:	5 ()
Headphone outputs:	1
USB 2.0 ports quantity:	3 ()
Ethernet LAN (RJ-45) ports:	1
PC in (D-Sub):	No
Common interface Plus (CI+):	Yes
Common interface (CI):	No
DVI port:	No
Component video (YPbPr/YCbCr) in:	1
Audio (L/R) in:	1
Digital audio optical out:	1
SCART ports quantity:	1
Energy monitoring
AC input frequency:	50 — 60 Hz
AC input voltage:	220 — 240 V
Power consumption (off):	0.1 W
Power consumption (standby):	0.1 W
Power consumption (typical):	139 W
Weight and measurements
Height (without stand):	85.5 cm
Height (with stand):	925 mm
Depth (with stand):	281 mm
Width (with stand):	1467 mm
Weight (with stand):	39.5 kg
Width (without stand):	146.7 cm
Depth (without stand):	4.55 cm
Weight (without stand):	37.5 kg
Connection
Wi-Fi:	Y ()
Ethernet LAN:	Y ()
Miracast:	Yes
Management Features
Electronic Programme Guide (EPG):	Yes
Firmware upgradeable:	Yes
Environmental conditions
Operating temperature (T-T):	5 — 35 °C
Other features
Energy efficiency class (old):	A
3D:	Yes
Batteries included:	Yes
3D glasses included:	Yes
3D glasses quantity:	6
Interactive TV:	Yes
Built-in speaker(s):	Yes
2D-3D converter:	Yes
3D type:	Passive
Annual energy consumption:	193 kWh
Design
Panel mounting interface:	400 x 400 mm
VESA mounting:	Y ()
Product colour:	Black
Performance
Teletext function:	Yes
Teletext:	1200 pages
Video formats supported:	AVC,AVI,H.264,MKV,MPEG1,MPEG2,MPEG4,VC-1,WMV9
Audio formats supported:	AAC,MP3,WMA
Image formats supported:	JPG
Smartphone remote support:	Yes
Noise reduction:	Yes
Smart TV
Internet TV:	Yes
Lifestyle apps:	Facebook, Skype, Twitter
Video apps:	NetFlix,YouTube
Timeshift:	Yes
Smart TV:	Y ()
Packaging
Package depth:	240 mm
Package height:	1151 mm
Package weight:	52.1 kg
Package width:	1585 mm
Quick start guide:	Yes
Warranty card:	Yes
Remote control included:	Yes
Cables included:	AC
Desktop stand:	Yes

Описание Philips 65PFL9708S

Насладитесь превосходным качеством изображения телевизоров Philips Ultra HD серии 9000.
Процессор Ultra HD Pixel использует шестиядерную обработку Hex Core и обеспечивает
невероятно четкое изображение как с исходным разрешением Ultra HD, так и с разрешением
Full HD.

ОСНОВНЫЕ ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ

Основные характеристики

Тип:

ЖК-телевизор

Диагональ:

65″ (165 см)

Формат экрана:

16:9

Разрешение:

3840×2160

Поддержка HD:

4K UHD

Светодиодная (LED) подсветка:

есть, Edge LED

Стереозвук:

есть

Частота обновления:

900 Гц

Поддержка 3D:

есть, поляризационная технология, конвертация 2D в 3D

Smart TV (доступ в интернет):

есть

Яркость:

450 кд/м2

Динамическая контрастность:

500000:1

Прогрессивная развертка:

есть

Прием сигнала

Поддержка телевизионных стандартов:

PAL, SECAM, NTSC

Поддержка DVB-T:

DVB-T MPEG4

Поддержка DVB-T2:

есть

Поддержка DVB-C:

DVB-C MPEG4

Поддержка DVB-S:

есть

Поддержка DVB-S2:

есть

Поддерживаемые форматы входного сигнала:

480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Доступные разрешения при подключении к ПК:

640×480 1920×1080

Звук

Объемное звучание:

есть

Декодер Dolby Digital:

есть

Автоматическое выравнивание громкости (AVL):

есть

Декодеры аудио:

Dolby Digital

Интерфейсы

Входы:

компонентный, SCART, RGB, HDMI x4, USB x3, Ethernet (RJ-45), Wi-Fi

Разъемы на передней/боковой панели:

HDMI

Версия интерфейса HDMI:

HDMI 1.4a

Поддержка Wi-Fi:

есть

Разъем для наушников:

есть

Поддержка CI:

есть

Поддержка 24p True Cinema:

есть

Поддержка DLNA:

есть

Поддержка Skype:

есть

Таймер сна:

есть

Защита от детей:

есть

Дополнительно

Цвет:

черный

Возможность крепления на стену:

есть

Дополнительная информация:

процессор Ultra Pixel HD; Perfect Motion Rate 900 Гц; Micro Dimming Plus; Perfect 3D Natural Motion

Основные технические характеристики

Тип продукта
Тип	ЖК телевизор
ТВ
Системы приема телевизионного сигнала	NTSC, PAL, SECAM, DVB-T (цифровое наземное), DVB-T2 (цифровое наземное), DVB-C (цифровое кабельное), DVB-S (цифровое спутниковое), DVB-S2 (цифровое спутниковое)
Экран
Технология	TFT 3D
Диагональ	65 »
Разрешение (макс.)	3840 x 2160
Яркость	450 кд/м²
Формат экрана	16:9
Угол обзора горизонтальный	178°
Угол обзора вертикальный	178°
Габариты и вес
Ширина	147 см
Высота	85.5 см
Глубина	4.5 см
Вес	37.5 кг
Ширина (с подставкой)	147 см
Высота (с подставкой)	92.5 см
Глубина (с подставкой)	28.1 см
Вес (с подставкой)	39.5 кг
