Design

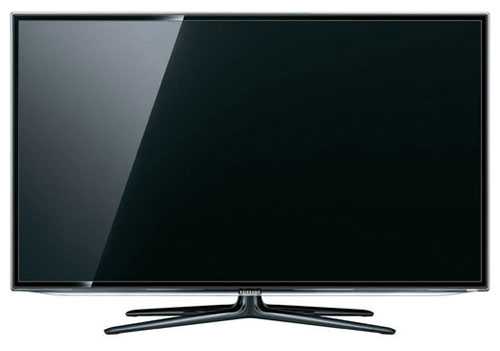

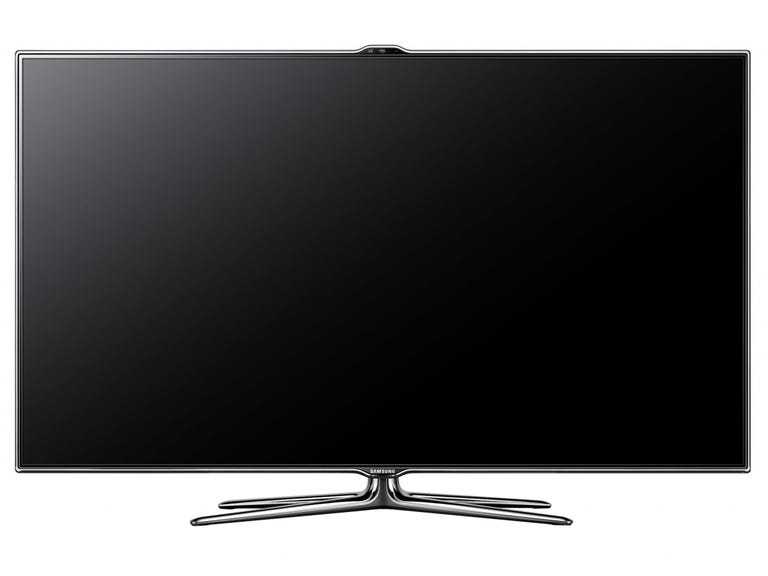

The UE40ES6300 will suit almost anyone’s tastes, because it’s both slim and cleanly designed. The LCD panel is framed by a glossy black bezel which is roughly 1cm thick at all sides. Framing that is a final transparent plastic border, with the faux-glass look that Samsung made so popular.

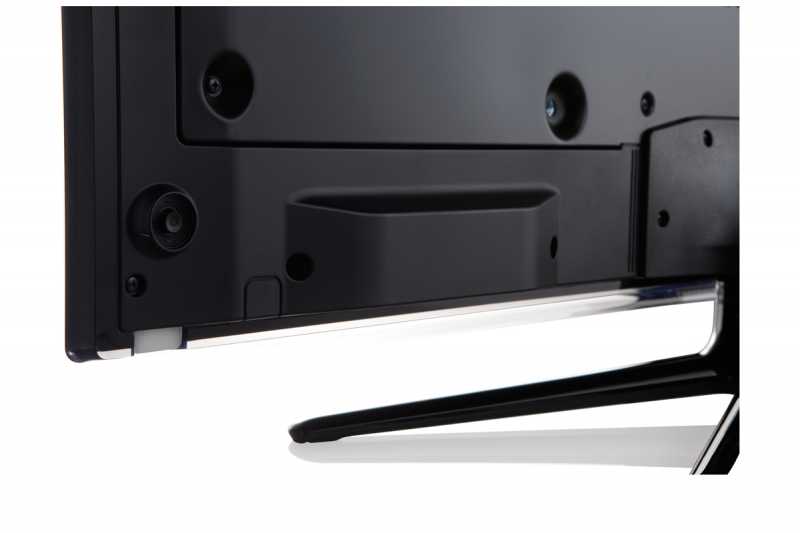

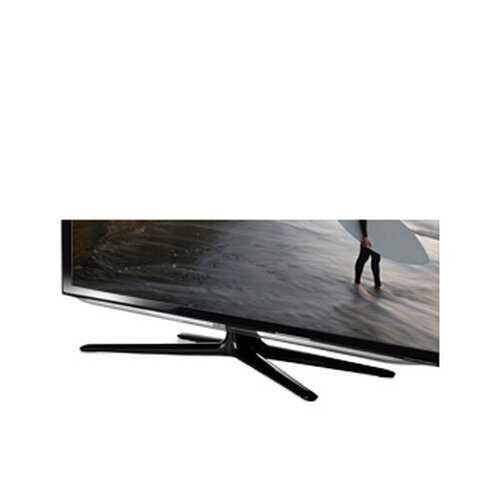

The 40ES6300 is shipped with a black variant of the “chicken foot” quad-legged stand. Attaching it was no trouble at all – unlike some previous Samsung HDTVs we’ve reviewed, the parts easily fit together, and given the relatively lightweight nature of a 40-inch LCD screen, it was no trouble at all to flip the TV on its side and screw the stand in.
Connections
- 3 HDMI inputs
- 1 Component input
- 1 SCART input
- 1 Composite input
- 1 PC “VGA” input
- Aerial input (DVB-T2 / “Freeview HD”)
- Satellite input (DVB-S2 / “Freesat HD”)

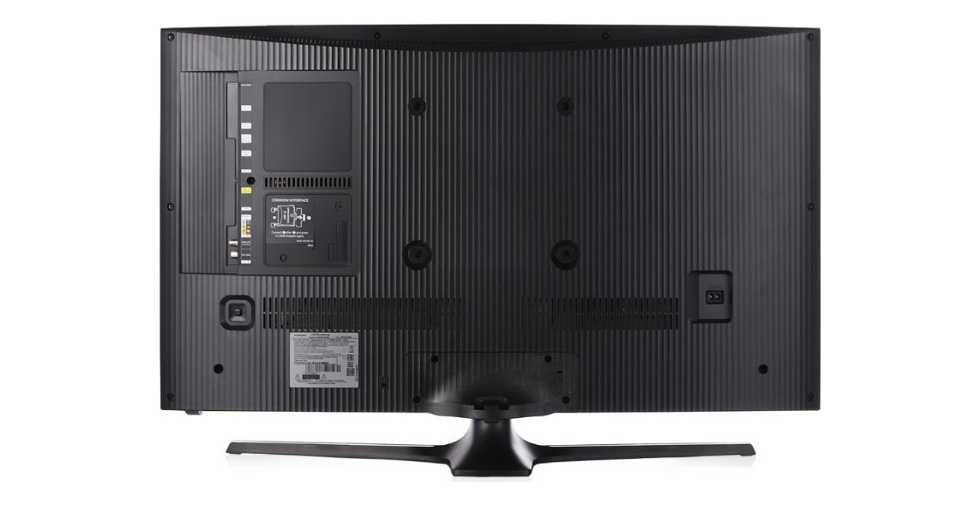

The UE40ES6300 uses “real”, direct inputs for all of its AV terminals, with the inputs on the back of the unit facing towards the wall. This will be non-ideal for wall-mounters, but there is some relief in the form of a single side-facing “HDMI3” input, which all video could theoretically be piped into if an ultra-clean installation is your priority.
Given that most users will simply be using the supplied table-top stand, we imagine the direct inputs, eliminating the need to dig break-out adapter cables out of the box, will be a blessing.
 |

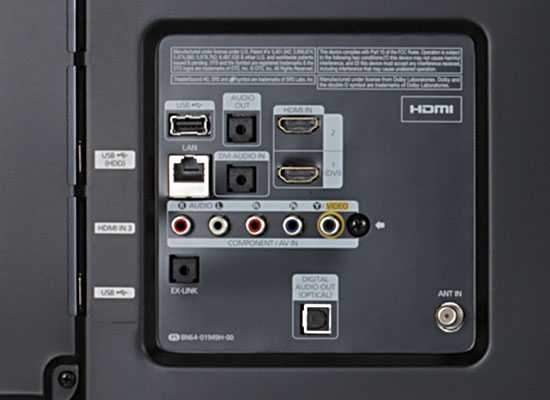

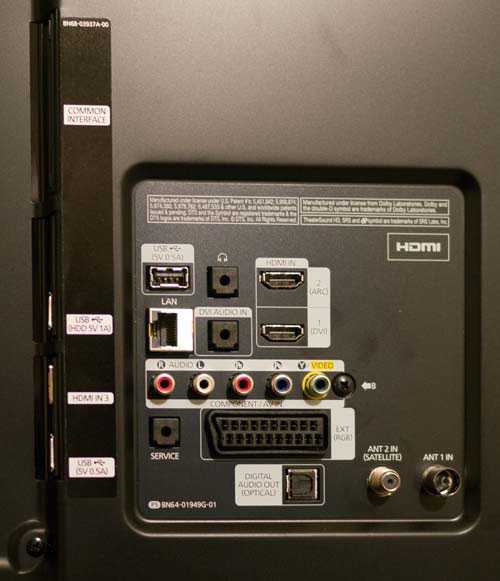

| Rear connections on Samsung UE40ES6300 |
Samsung UE40ES6300U 101.6 cm (40″) Full HD Smart TV Wi-Fi Grey
The Samsung UE40ES6300U TV is a model with a screen diagonal of 101.6 cm, a screen resolution of 1920 x 1080 pixels, an aspect ratio of 16:9, 3 HDMI ports to connect a Blu-ray player, DVD, a game console, etc., 3 USB ports to connect an external hard drive, a Chromecast, a Bluetooth receiver etc., Ethernet port to connect to the internet via cable, internet connection via Wi-Fi, in addition to the rest of the features listed below.
Release date: 2012-02-14.
| Exhibition | |
|---|---|
| Brand | Samsung |
| Model | UE40ES6300U |
| Aspect ratio | 16:9 |
| HDMI ports | 3 |
| USB supports | Yes |
| Ethernet sockets | Yes |
| USB ports | 3 |
| Ultra slim TV | No |
| Curved TV | No |
| Size diagonal | 101.6 |
| Resolution | 1920 x 1080 |
| Colour | Grey |
| No. of speakers | 2 |
| Total speaker output | 20 |
| Internet access | Yes |
| Smart TV | Yes |
| Wi-Fi | Yes |
| Miracast screen mirroring support | Yes |
| Voltage requirement | 220 — 240 |
| Power consumption standby | 0.3 |
| Short description | Samsung UE40ES6300U, 101.6 cm (40″), 1920 x 1080 pixels, 3D, Smart TV, Wi-Fi, Grey |
| Long description | Samsung UE40ES6300U. Display diagonal: 101.6 cm (40″), Display resolution: 1920 x 1080 pixels, HD type: Full HD. 3D. LED backlighting type: Edge-LED. Smart TV. Motion interpolation technology: CMR (Clear Motion Rate) 200, Native aspect ratio: 16:9. Digital signal format system: DVB-C,DVB-S2,DVB-T2. Wi-Fi, Ethernet LAN. Product colour: Grey |
| HD type: | Full HD () |
| Display diagonal: | 101.6 cm (40″) |
| Native refresh rate: | 60 Hz |
| Supported graphics resolutions: | 1920 x 1080 (HD 1080) |
| Supported video modes: | 1080p |
| Motion interpolation technology: | CMR (Clear Motion Rate) 200 |
| Native aspect ratio: | 16:9 |
| Display resolution: | 1920 x 1080 pixels |
| LED backlighting type: | Edge-LED |
| Audio | |
| Audio system: | Dolby Digital Plus / Dolby Pulse |
| Number of speakers: | 2 |
| RMS rated power: | 20 W |
| Auto volume leveller: | Yes |
| TV tuner | |
| Tuner type: | Analog & digital |
| Digital signal format system: | DVB-C,DVB-S2,DVB-T2 |
| Auto channel search: | Yes |
| Ports and Interfaces | |
| HDMI ports quantity: | 3 () |
| Common interface (CI): | No |
| Headphone outputs: | 1 |
| USB 2.0 ports quantity: | 3 () |
| Ethernet LAN (RJ-45) ports: | 1 |
| PC in (D-Sub): | No |
| Common interface Plus (CI+): | Yes |
| DVI port: | No |
| Component video (YPbPr/YCbCr) in: | 1 |
| Composite video in: | 1 |
| SCART ports quantity: | 1 |
| RF ports quantity: | 1 |
| Consumer Electronics Control (CEC): | Anynet+ |
| Energy monitoring | |
| AC input frequency: | 50 — 60 Hz |
| AC input voltage: | 220 — 240 V |
| Power consumption (standby): | 0.3 W |
| Power consumption (typical): | 63 W |
| Weight and measurements | |
| Width (without stand): | 92.7 cm |
| Width (with stand): | 926.8 mm |
| Depth (with stand): | 241.3 mm |
| Height (with stand): | 619.1 mm |
| Weight (with stand): | 11.6 kg |
| Depth (without stand): | 4.69 cm |
| Weight (without stand): | 10.3 kg |
| Package dimensions (WxDxH): | 1154 x 646 x 132 mm |
| Height (without stand): | 55.3 cm |
| Connection | |
| Browsing: | Yes |
| Ethernet LAN: | Y () |
| Wi-Fi: | Y () |
| Management Features | |
| On Screen Display (OSD): | Yes |
| On/Off timer: | Yes |
| Sleep timer: | Yes |
| Picture-in-Picture: | Yes |
| Number of OSD languages: | 29 |
| Electronic Programme Guide (EPG): | Yes |
| Other features | |
| 3D: | Yes |
| Energy efficiency class (old): | A |
| Wi-Fi ready: | Yes |
| Batteries included: | Yes |
| Built-in speaker(s): | Yes |
| Annual energy consumption: | 92 kWh |
| Digital Living Network Alliance (DLNA) certified: | Yes |
| Design | |
| Product colour: | Grey |
| VESA mounting: | Y () |
| On/off switch: | Yes |
| LED indicators: | Yes |
| Performance | |
| Teletext: | 1000 pages |
| Local dimming: | No |
| Picture processing technology: | Samsung Wide Color Enhancer |
| BD Wise: | Yes |
| Smartphone remote support: | Yes |
| Teletext function: | Yes |
| Game mode: | Yes |
| Smart TV | |
| Internet TV: | Yes |
| Lifestyle apps: | Skype |
| Timeshift: | Yes |
| Smart TV: | Y () |
| Packaging | |
| Quick start guide: | Yes |
| Manual: | Yes |
| Package weight: | 13.7 kg |
| Warranty card: | Yes |
| Remote control included: | Yes |
| Cables included: | AC |
| Desktop stand: | Yes |
Benchmark Test Results
| Dead pixels | None |
| Screen uniformity | Left and right edges bluer than middle, brightness distribution not consistent (standard for edge-lit LED) |
| Calibrated black level (black screen) | 0.069 cd/m2 before panel automatically shuts off |
| Calibrated black level (ANSI checkerboard) | 0.069 cd/m2 |
| Black level retention | Panel automatically shuts off with full black screen, no other dimming noted |
| Primary chromaticity | Very Good |
| Scaling | Good |
| Video mode deinterlacing | Good |
| Film mode deinterlacing | Passed 2-2 PAL and 3-2 NTSC tests |
| Viewing angle | Colours and contrast deteriorate off-axis, common for VA-type LCD |
| Motion resolution | 600 lines approx |
| Digital noise reduction | Defeatable NR filtering |
| Sharpness | Defeatable edge enhancement |
| Luma/Chroma bandwidth (2D Blu-ray) | Full Luma, Chroma horizontally blurred |
| 1080p/24 capability | No judder in 2D, motion stutter in 3D |
| Input lag | 31ms compared to lag-free CRT |
| Full 4:4:4 reproduction (PC) | Yes, with PC input label and 60hz input |
Power Consumption
| Default mode (2D) | 71 watts |
| Default mode (3D) | 82 watts |
| Calibrated mode (2D) | 75 watts |
| mode (3D) | 83 watts |
| Standby | 1 watt |
