Important information
Safety
Ensure that your domestic mains supply voltage
matches the voltage indicated on the identication
sticker located at the back of your set. Where the
mains plug, AC inlet or an appliance coupler is used
as disconnect device, it shall remain readily operable.
On certain models, the light indicator is located at the
side of the TV set. The absence of a light indication
at the front does not mean that the TV set is fully
disconnected from the mains. To disconnect the TV
set completely, the mains plug must be pulled out.
The TV set’s components are sensitive to heat. The
maximum ambient temperature should not exceed
35º Celsius. Do not cover the vents at the back or
sides of the TV set. Leave sufcient space around it to
allow adequate ventilation. Install the appliance away
from any source of heat (replace, etc.) or appliances
creating strong magnetic or electric elds.
Moisture in rooms where the set is installed should
not exceed 75% humidity. Moving the set from a cold
place to a warm one can cause condensation on the
screen (and on some components inside the TV set).
Let the condensation evaporate before switching the
TV set on again.
The
or POWER/ button on the TV set or the
button on the remote control can be used to switch it
on and put it into standby mode. If you are not going
to be watching the TV for a lengthy period of time,
switch it off completely by removing the plug from the
mains power socket.
During thunderstorms, we recommend that you
disconnect the TV set from the mains and aerial so
that it is not affected by electrical or electromagnetic
surges that could damage it. For this reason, keep the
mains and aerial sockets accessible so they can be
disconnected, if necessary.
Unplug the TV set immediately if you notice it giving
off a smell of burning or smoke. You must never,
under any circumstances, open the TV set yourself,
as you run the risk of an electric shock in doing so.
WARNINGS
This appliance is intended for domestic household
use only and should not be used for any other
application, such as for non-domestic use or in a
commercial environment.
If the external exible cable or cord of this product is
damaged, it shall be replaced by the manufacturer or
his service agent or a similar qualied person in order
to avoid a hazard.
Leave more than 10cm clearance around the
television to allow adequate ventilation. The
ventilation should not be impeded by covering the
ventilation openings with items, such as newspapers,
table-cloths, curtains, etc.
The apparatus shall not be exposed to dripping or
splashing and no objects lled with liquids, such as
vases shall be placed on the apparatus.
Batteries (battery pack or batteries installed) shall not
be exposed to excessive heat such as sunshine, re
or the like.
To reduce the risk of re or electric shock, do not
expose this apparatus to rain or moisture.
Never place a television set in an unstable location. A
television set may fall, causing serious personal injury
or death. Many injuries, particularly to children, can
be avoided by taking simple precautions such as:
• Using cabinets or stands recommended by the
manufacturer of the television set.
• Only using furniture that can safely support the
television set.
• Ensuring the television set is not overhanging the
edge of the supporting furniture.
• Not placing the television set on tall furniture
(for example, cupboards or bookcases) without
anchoring both the furniture and the television set to
a suitable support.
• Not placing the television set on cloth or other
materials that may be located between the television
set and supporting furniture.
• Educating children about the dangers of climbing on
furniture to reach the television set or its controls.
If your existing television set is being retained and
relocated, the same considerations as above should
be applied.
Equipment with this symbol is a Class II or
double insulated electrical appliance. It has
been designed in such a way that it does not
require a safety connection to electrical earth.
Equipment without this symbol is a Class I
electrical appliance. It shall be connected to a
mains socket outlet with a protective earthing
connection.
To prevent the spread of re, keep candles or
other open ames away from this product at all
times.
To prevent injury, this apparatus must be securely
attached to the oor/wall in accordance with the
installation instructions.
To reduce the risk of RF exposure, the use distance
of this apparatus should be at least 100cm.
TV screen
The TV screen used in this product is made of glass.
Therefore, it can break when the product is dropped
Image quality, sound and general functions
This model has more than enough features and specifications to offer you a very good result. At least as far as image is concerned. You will only have to worry about getting sources with content with sufficient resolution to make it look on the panel of this Thomson 43UC6306.
4K resolution in the Thomson 43UC6306 image
43 inches It is the size that we analyze now although we have already analyzed this same model but with 49, the Thomson 49UC6306. Both with an excellent 4K Ultra HD resolution that will allow you not to miss the smallest detail of the content you want to enjoy in it.
We will also have HDR so the contrast will gain a wide range of blacks and pure whites much whiter than on a television without this high dynamic range.
With 1200 Hz PPI It will be possible to eliminate much of the shaking or blurring of the contours of the figures when moving on the screen. This parameter is ideal if you are one of those who love video games or action movies with realistic movements.
The sound for the inches we analyzed is not bad. Two speakers with 8W each they can be enough if we are not high volume and not very large room.

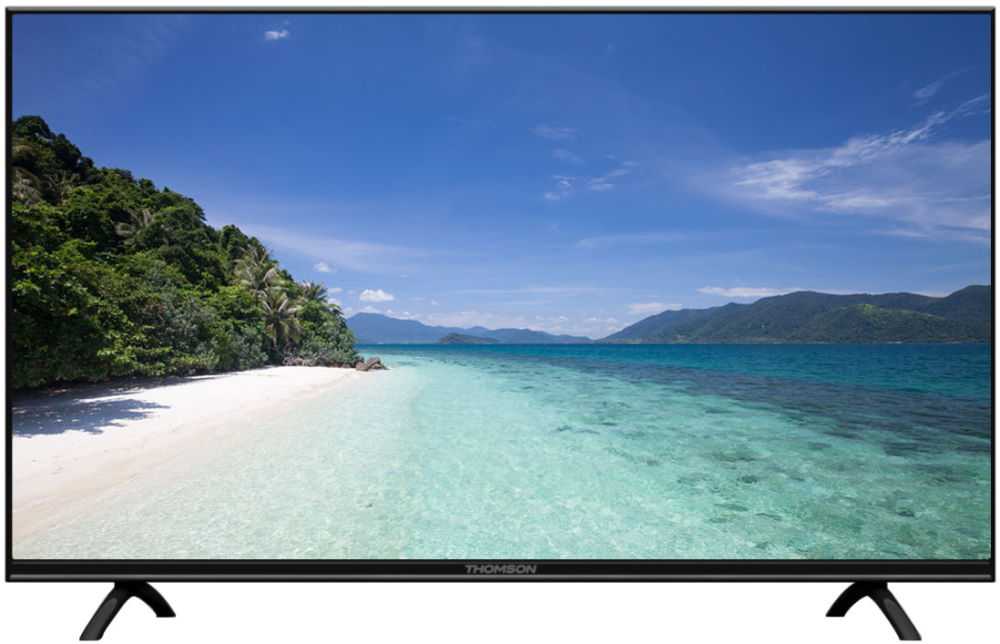

Thomson 43UC6306 TV 109.2 cm (43″) 4K Ultra HD Smart TV Wi-Fi Silver
The Thomson 43UC6306 TV is a model with LED technology, a screen diagonal of 109.2 cm, a screen resolution of 3840 x 2160 pixels, an aspect ratio of 16:9, 3 HDMI ports to connect a Blu-ray player, DVD, a game console, etc., 2 USB ports to connect an external hard drive, a Chromecast, a Bluetooth receiver etc., Ethernet port to connect to the internet via cable, internet connection via Wi-Fi, in addition to the rest of the features listed below.
Release date: 2017-11-21.
| Exhibition | |
|---|---|
| Brand | Thomson |
| Model | 43UC6306 |
| Aspect ratio | 16:9 |
| HDMI ports | 3 |
| USB supports | Yes |
| Ethernet sockets | Yes |
| USB ports | 2 |
| Ultra slim TV | No |
| Type | LED |
| Curved TV | No |
| Size diagonal | 109.2 |
| Resolution | 3840 x 2160 |
| Colour | Silver |
| No. of speakers | 2 |
| Total speaker output | 16 |
| Smart TV | Yes |
| Wi-Fi | Yes |
| Miracast screen mirroring support | Yes |
| Voltage requirement | 220 — 240 |
| Power consumption standby | 0.3 |
| Short description | Thomson 43UC6306, 109.2 cm (43″), 3840 x 2160 pixels, LED, Smart TV, Wi-Fi, Silver |
| Long description | Thomson 43UC6306. Display diagonal: 109.2 cm (43″), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LED, Screen shape: Flat. Smart TV. Motion interpolation technology: PPI (Picture Performance Index) 1200, Display brightness: 270 cd/m², Native aspect ratio: 16:9. Digital signal format system: DVB-C,DVB-S2,DVB-T2. Wi-Fi, Ethernet LAN. Product colour: Silver |
| Handheld remote control: | Yes |
| Native aspect ratio: | 16:9 |
| Motion interpolation technology: | PPI (Picture Performance Index) 1200 |
| HD type: | 4K Ultra HD () |
| Screen shape: | Flat |
| Dynamic contrast ratio marketing name: | Mega Contrast |
| Display technology: | LED |
| Display resolution: | 3840 x 2160 pixels |
| Peak luminance ratio: | 83% |
| Display diagonal (metric): | 109.2 cm |
| Display diagonal: | 109.2 cm (43″) |
| Colour depth: | 10 bit |
| Display brightness: | 270 cd/m² |
| Audio | |
| Number of speakers: | 2 |
| Equalizer: | Yes |
| RMS rated power: | 16 W |
| Auto volume leveller: | Yes |
| Audio decoding technologies: | Dolby Digital Plus |
| TV tuner | |
| Digital signal format system: | DVB-C,DVB-S2,DVB-T2 |
| Tuner type: | Analog & digital |
| Auto channel search: | Yes |
| Analog signal format system: | NTSC,PAL,SECAM |
| Ports and Interfaces | |
| Common interface Plus (CI+) version: | 1.3 |
| PC in (D-Sub): | No |
| USB 2.0 ports quantity: | 2 () |
| Headphone outputs: | 1 |
| HDMI version: | 2.0b |
| HDMI Quick Switch: | Yes |
| HDMI ports quantity: | 3 () |
| HDCP: | Yes |
| Ethernet LAN (RJ-45) ports: | 1 |
| Audio Return Channel (ARC): | Yes |
| Common interface Plus (CI+): | Yes |
| DVI port: | No |
| Common interface (CI): | Yes |
| Digital audio coaxial out: | 1 |
| Component video (YPbPr/YCbCr) in: | 1 |
| Consumer Electronics Control (CEC): | T-link |
| Energy monitoring | |
| Power consumption (standby): | 0.3 W |
| AC input frequency: | 50 Hz |
| Power consumption (typical): | 70 W |
| Power consumption (max): | 95 W |
| AC input voltage: | 220 — 240 V |
| Weight and measurements | |
| Depth (with stand): | 181 mm |
| Height (with stand): | 610 mm |
| Height (without stand): | 56.6 cm |
| Width (with stand): | 976 mm |
| Weight (without stand): | 7.6 kg |
| Width (without stand): | 97.6 cm |
| Weight (with stand): | 7.9 kg |
| Connection | |
| Ethernet LAN: | Y () |
| Wi-Fi: | Y () |
| Wi-Fi standards: | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Web browser: | Yes |
| Management Features | |
| Electronic Programme Guide (EPG): | Yes |
| On Screen Display (OSD): | Yes |
| Number of OSD languages: | 30 |
| Programming period: | 8 day(s) |
| Basic hotel mode: | Yes |
| Sleep timer: | Yes |
| Other features | |
| Energy efficiency class (old): | A+ |
| Music power: | 32 W |
| 3D: | No |
| Cord length: | 1.5 m |
| Built-in speaker(s): | Yes |
| Batteries included: | Yes |
| Annual energy consumption: | 103 kWh |
| Design | |
| Panel mounting interface: | 100 x 100 mm |
| VESA mounting: | Y () |
| On/off switch: | Yes |
| Heavy metals free: | Hg (mercury) |
| Product colour: | Silver |
| Performance | |
| USB recording: | Yes |
| High Dynamic Range (HDR) supported: | Yes |
| Teletext function: | Yes |
| Subtitles function: | Yes |
| Processor cores: | 2 |
| Noise reduction: | Yes |
| Local dimming: | Yes |
| Game mode: | Yes |
| 4K Ultra HD upscaling: | Yes |
| Smart TV | |
| Smart TV: | Y () |
| Video apps: | NetFlix,YouTube |
| Hybrid Broadcast Broadband TV (HbbTV) version: | 1.5 |
| Hybrid Broadcast Broadband TV (HbbTV): | Yes |
| Packaging | |
| Remote control type: | RC802N2 |
| Package width: | 1133 mm |
| Package weight: | 11.2 kg |
| Package height: | 655 mm |
| Package depth: | 142 mm |

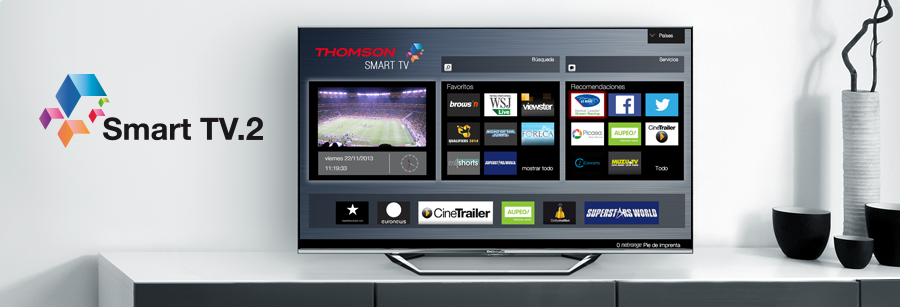

Software analysis / SmartTV
Thomson’s proprietary Smart TV.2 operating system
The operating system that integrates this UC6306 series is the manufacturer’s own. And the name is that it is not very elaborate, Smart TV.2 is named.
Unfortunately it is not as intuitive or agile as other more expanded and widespread systems by other manufacturers that also develop it themselves or take it from the great Google, for example.
But if you have access to widely used and widespread video demand apps like Netflix or Youtube, for example. In addition, you can use this smart TV all the hours you want thanks to its good energy certification category A with a 70W maximum consumption.

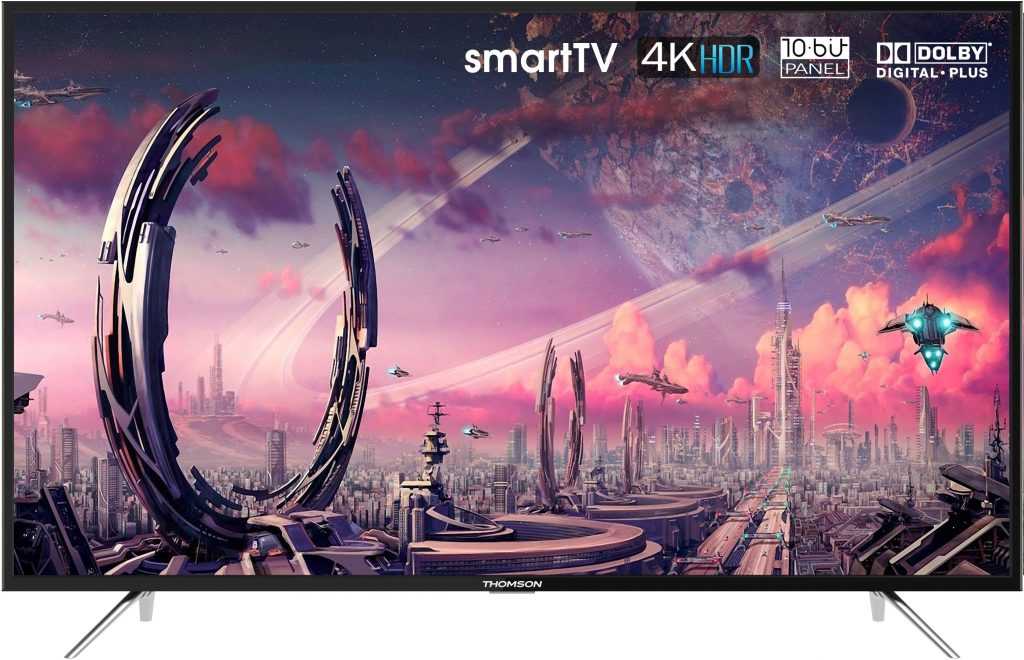

Thomson 43UC6306 Exterior Design
For a model of just over 40 inches we are facing a design with such thin lines that it seems that it stands little.
Of very slim black frames and silver glossy textured bases form the contrast of materials and tones of the exterior design of this Thomson 43UC6306.
A contrast of materials that make it modern and can be integrated into almost any type of living room and decoration.
Thomson 43UC6306 Exterior Design
Slim bezels surround the panel of this Thomson 43UC6306. The manufacturer’s logo is located in the lower frame right in the center where it can be seen below it if we do not fix a small light-tone reed where the status LEDs and the IR receiver are located.
The shiny cylindrical boomerang brackets moderately lift this Thomson 43UC6306 off the table. If we wish, we can also hang this same model on the wall thanks to its VESA type compatibility.
A modest profile makes this model a smart TV with fine, simple and modern lines at the same time, although in the design we are not facing an innovative or premium design.
But if we can say that it is a design that gives all the prominence to the image that the image processor will work on and will dump in this medium-sized panel.
Thomson 43UC6306 Connectivity
Within the mid-range it is almost normal not to find a bluetooth connection so we will have to connect headphones, keyboards and other wired devices in the middle of the room. Of course, we will have Wifi wireless connection as in any smart TV that boasts the alternative connection LAN.
As to tuners if we have a great variety since we will have classic analogue tuner, cable, tuner with PCMCIA slot for CI +, satellite tuner and digital television with TDT2 Incorporated. Thus we ensure full compatibility with the new DTT format that will soon (hopefully…) arrive in our country.
The rest make up 3 HDMI, 2 USB with player and recorder function, component video input, optical digital audio output and headphone output. All ready to connect a multitude of multimedia devices.
