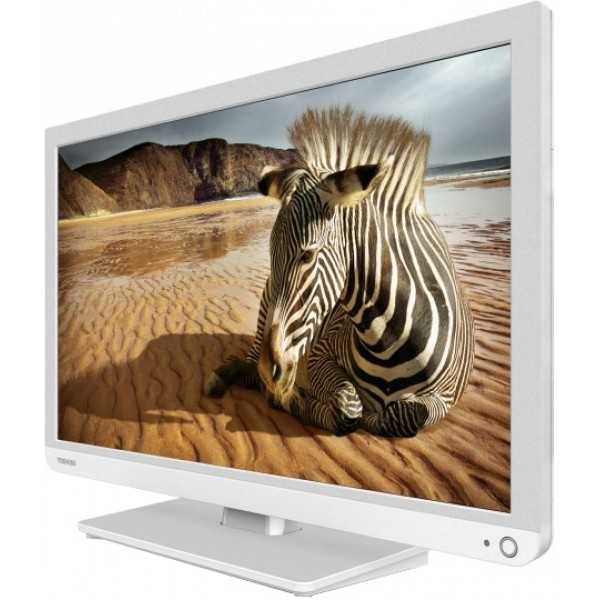

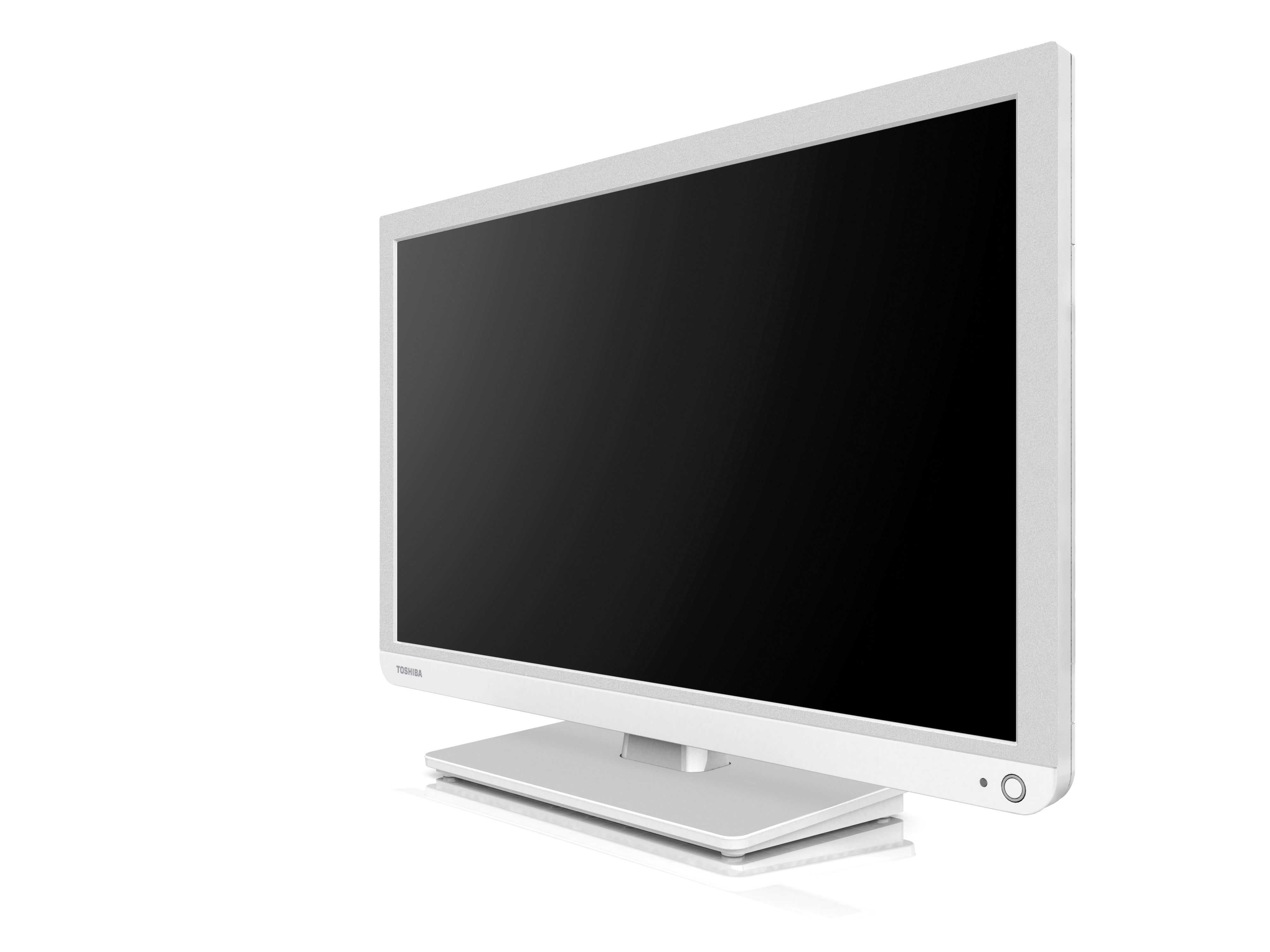

Toshiba 24W1334G

The Toshiba 24W1334G TV is a model with a screen diagonal of 61 cm, a screen resolution of 1366 x 768 pixels, an aspect ratio of 16:9, 1 HDMI ports to connect a Blu-ray player, DVD, a game console, etc., 2 USB ports to connect an external hard drive, a Chromecast, a Bluetooth receiver etc., Ethernet port to connect to the internet via cable, in addition to the rest of the features listed below.

Release date: 2013-01-14.

Exhibition
Brand Toshiba
Model 24W1334G
Aspect ratio 16:9
HDMI ports 1
USB supports Yes
Ethernet sockets No
USB ports 2
Ultra slim TV No
Curved TV No
Size diagonal 61
Resolution 1366 x 768
Colour White
Image formats supported BMP, GIF, JPG, PNG
Video formats supported 3GP,ASF,DAT,FLV,MP4,MPEG,MPG,MXV,VOB,XVID
Audio formats supported AC3,ASF,LPCM,MP3,WAV
No. of speakers 2
Total speaker output 5
Miracast screen mirroring support Yes
Voltage requirement 220 — 240
Power consumption standby 0.23
Short description Toshiba 24W1334G, 61 cm (24″), 1366 x 768 pixels, HD, DVB-C,DVB-T, White
Long description Toshiba 24W1334G. Display diagonal: 61 cm (24″), Display resolution: 1366 x 768 pixels, HD type: HD, Screen shape: Flat, LED backlighting type: Edge-LED, Motion interpolation technology: AMR (Active Motion Rate) 50, Display brightness: 250 cd/m², Response time: 8.5 ms, Native aspect ratio: 16:9. Digital signal format system: DVB-C,DVB-T. Product colour: White
HD type: HD ()
Display diagonal: 61 cm (24″)
Display diagonal (metric): 61 cm
Comb filter: 3D
Viewing angle, vertical: 176°
Viewing angle, horizontal: 176°
Native refresh rate: 50 Hz
Supported video modes: 1080i,1080p,480i,480p,576i,576p,720i,720p
LED backlighting type: Edge-LED
Motion interpolation technology: AMR (Active Motion Rate) 50
Response time: 8.5 ms
Display brightness: 250 cd/m²
Native aspect ratio: 16:9
Screen shape: Flat
Display resolution: 1366 x 768 pixels
Audio
Audio system: NICAM Stereo, Virtual Surround Sound
RMS rated power: 5 W
Number of speakers: 2
TV tuner
Analog signal format system: NTSC,PAL BG,SECAM D/K
Digital signal format system: DVB-C,DVB-T
Tuner type: Analog & digital
Ports and Interfaces
Digital audio coaxial out: 1
Composite video in: 1
SCART ports quantity: 1
PC in (D-Sub): Yes
Component video (YPbPr/YCbCr) in: 1
DVI port: No
Common interface Plus (CI+): Yes
Common interface (CI): No
Headphone outputs: 1
USB 2.0 ports quantity: 2 ()
HDMI ports quantity: 1
Energy monitoring
Power consumption (max): 50 W
Power consumption (standby): 0.23 W
Power consumption (typical): 24 W
AC input voltage: 220 — 240 V
AC input frequency: 50 — 60 Hz
Weight and measurements
Weight (without stand): 4.8 kg
Height (without stand): 34.9 cm
Depth (without stand): 4.6 cm
Width (without stand): 56.6 cm
Weight (with stand): 5 kg
Height (with stand): 387 mm
Depth (with stand): 163 mm
Width (with stand): 566 mm
Connection
Ethernet LAN: No
Wi-Fi: No
Management Features
Electronic Programme Guide (EPG): Yes
On Screen Display (OSD): Yes
On/Off timer: Yes
Other features
Energy efficiency class (old): A
3D: No
Built-in speaker(s): Yes
Annual energy consumption: 35 kWh
Design
Product colour: White
VESA mounting: Y ()
On/off switch: Yes
Panel mounting interface: 75 x 75 mm
Performance
Teletext: 1005 pages
Video formats supported: 3GP,ASF,DAT,FLV,MP4,MPEG,MPG,MXV,VOB,XVID
Audio formats supported: AC3,ASF,LPCM,MP3,WAV
Noise reduction: Yes
Teletext function: Yes
24p support: Yes
Image formats supported: BMP, GIF, JPG, PNG
Smart TV
Internet TV: No
Smart modes: Dynamic, Game, PC
Smart TV: No
Technical details
Sustainability certificates: RoHS
Packaging
Remote control included: Yes
Quick start guide: Yes
Package width: 700 mm
Package depth: 110 mm
Package height: 418 mm
Package weight: 7.5 kg
Desktop stand: Yes
